Wire EDM: Process, Precision, Applications, and Advantages

Wire EDM (Electrical Discharge Machining) is an advanced cutting technique that utilizes electrical sparks to erode metal with extreme precision. This method is renowned for its capability to create complex shapes and fine details in hardened steel without requiring heat treatment for softening or re-hardening.

In this article, we’ll explore the working principles of wire EDM, its advantages, key applications, unique features, and important machining parameters.

What is Wire EDM?

Wire EDM (Wire Electrical Discharge Machining) is an advanced machining technique that uses a thin, electrically charged wire as an electrode to cut conductive materials. By generating controlled electrical sparks between the wire and the workpiece, the metal is gradually eroded to achieve precise cuts and intricate shapes.

This process allows for exceptional accuracy and minimal material distortion, making it ideal for manufacturing complex components with tight tolerances.

Wire EDM is widely used in industries like aerospace, medical devices, and tool and die manufacturing, where precision and fine detail are critical.

Get a Quote

The Evolution and Development of Wire EDM

The origins of Wire EDM are closely tied to the evolution of Electrical Discharge Machining (EDM), which revolutionized precision machining.

  • 1943: The foundation of EDM technology was laid by Soviet scientists B. R. Lazarenko and N. I. Lazarenko. They developed a method to prevent tool wear by utilizing controlled electrical discharges.
  • 1960s: The introduction of the first commercially viable wire EDM machines marked a significant breakthrough. These machines used a continuously moving wire electrode to achieve precise cuts.
  • 1970s: With the integration of CNC technology, wire EDM systems experienced a major advancement. This innovation significantly enhanced precision and efficiency, allowing for the machining of intricate and complex components.

How Does Wire EDM Work?

Wire EDM, or Wire Electrical Discharge Machining, is an advanced manufacturing process that leverages a thin, electrically charged wire to cut conductive materials with exceptional accuracy.

To fully grasp the potential of wire EDM, it’s important to understand the core stages involved:

  1. Wire Threading: A fine wire, typically made of brass or coated copper, is carefully threaded through the machine and positioned near the workpiece.
  2. Path Programming: Using CNC (Computer Numerical Control) technology, the wire is guided along a predefined path to achieve intricate and precise geometries.
  3. Spark Generation: When a high voltage is applied, electrical discharges occur between the wire and the workpiece. These sparks melt and vaporize the material along the wire’s path.
  4. Material Removal: As the wire continuously moves, it erodes the metal to form the desired shape. The tiny particles removed are flushed away by a dielectric fluid, ensuring a smooth and clean cut.
  5. Cooling and Flushing: The dielectric fluid also serves to cool the wire and the workpiece, preventing excessive heat buildup that could affect the material’s properties or dimensional accuracy.

What Are the Key Components of a Wire EDM Machine?

Wire EDM (Wire Electrical Discharge Machining) operates through a combination of essential components, each contributing to the machine’s precision and performance.

Get a Quote

Wire

In wire EDM machines, the wire acts as the cutting electrode. It is usually composed of materials like brass or coated copper, known for their superior electrical conductivity and resistance to the intense heat generated during the discharge process.

The wire diameter typically ranges from 0.004″ to 0.012″, directly influencing the cutting accuracy and surface finish. Maintaining proper tension and positioning of the wire is essential to achieve the high precision and intricate geometries that wire EDM is renowned for.

Dielectric Fluid

The dielectric fluid, typically a liquid, plays a vital role in the wire EDM process by serving several key functions:

  • It insulates the wire electrode from the workpiece, preventing unwanted electrical discharges.
  • Acts as a coolant to regulate the temperature in the cutting area, minimizing the risk of material distortion due to excess heat.
  • Helps flush away the material that has been eroded, keeping the cutting area clear of debris and maintaining machining accuracy.

Deionized water is the most commonly used dielectric fluid in wire EDM, though oil is sometimes utilized in specific applications where a smoother surface finish is needed. The choice of dielectric fluid significantly affects both the efficiency of material removal and the quality of the final part.

Power Supply

The power supply is a critical element in wire EDM machines, playing a vital role in controlling the voltage and current that generate the sparks required for cutting. It ensures precise electrical discharges between the wire electrode and the workpiece, allowing for fine and detailed cuts with minimal physical contact. This reduces the wear and tear on both the cutting wire and the workpiece.

Key functions of the power supply in wire EDM include:

  • Voltage Regulation: Adjusts the intensity of the electrical discharges.
  • Pulse Control: Modulates the duration and frequency of the sparks to optimize cutting speed, precision, and surface quality.
  • Thermal Management: Helps prevent excessive heat buildup that could affect the material’s properties or dimensional integrity.

CNC System

The CNC (Computer Numerical Control) system in a wire EDM machine is a vital component for achieving high precision. It directs the movement of the wire electrode, ensuring it follows the programmed paths based on the digital designs provided by the operator.

The CNC system guarantees that the wire stays on the correct course and alignment throughout the cutting process, which is crucial for obtaining the desired shape and size of the part.

Key functions of the CNC system include:

  • Path Programming: Allows operators to input detailed cutting paths for the machine to follow with high accuracy.
  • Automated Adjustments: Enables automatic modifications to parameters like wire tension and feed rate, responding to variations in cutting conditions.
  • Real-Time Monitoring: Includes diagnostic tools to track machining accuracy and identify any potential errors during the process.

Wire Guides

Wire guides are integral components in wire EDM machines, ensuring the wire remains stable and aligned during the machining process. They maintain the wire’s tension and straightness as it moves through the workpiece, which is essential for precise cutting.

Made from wear-resistant materials like diamond or sapphire, wire guides offer durability and help maintain consistent precision over time.

Key functions and significance of wire guides include:

  • Wire Stability: They prevent any instability in the wire during high-speed operations and electrical discharges.
  • Precision Alignment: Ensure the wire follows the exact path programmed by the CNC system, maintaining accuracy in the cut.
  • Wear Resistance: Materials such as diamond or sapphire minimize the frequency of replacements and extend the life of the machine.

Flush Pump System

The flush pump system is responsible for circulating the dielectric fluid around the cutting zone in wire EDM machines. Its primary function is to remove metal debris and contaminants from the gap between the wire and the workpiece. This process is vital for maintaining cutting accuracy and preventing electrical short circuits.

Servo Control System

The servo control system in wire EDM machines is responsible for managing the precise movement of the wire. By responding to real-time feedback from sensors, it ensures that the wire follows the programmed path and maintains proper tension throughout the cutting process, as directed by the CNC system.

Filter System

The filter system plays a vital role in keeping the dielectric fluid clean. It removes metal particles and debris produced during the cutting process, ensuring the fluid remains efficient in cooling, flushing, and insulating the cutting area.

Workpiece Holding Fixtures

Workpiece holding fixtures are designed to firmly secure and position the workpiece throughout the machining process. Proper fixture alignment is crucial for maintaining precision, especially when handling intricate or fragile components.

Chiller or Cooling System

Certain wire EDM machines are equipped with a cooling or chiller system that regulates the temperature of the dielectric fluid. Keeping the fluid at an optimal temperature is essential to prevent thermal deformation of the workpiece and enhance the machine’s overall performance.

Wire Breakage Detection System

This system continuously monitors the condition of the wire and immediately halts the machine if a wire breakage is detected. This prevents potential damage to the workpiece and minimizes production downtime.

Types of Wire Used in Wire EDM Machines

In wire EDM (Electrical Discharge Machining), selecting the right type of wire is essential for achieving optimal performance and cost-effectiveness.

1. Brass Wire

Brass wire is the most commonly used option due to its excellent electrical conductivity and affordability. It provides a good balance between cutting speed and precision, making it ideal for general-purpose machining.

2. Coated Wire

This type of wire features a brass or copper core with a thin coating of materials like zinc. The coating enhances cutting speed and improves surface finish, making it suitable for high-precision applications.

3. Tungsten Wire

With its high melting point and exceptional strength, tungsten wire is perfect for cutting tough, heat-resistant materials. It is often used when extremely fine surface finishes are required.

4. Molybdenum Wire

Molybdenum wire offers excellent heat resistance and electrical conductivity. It is ideal for applications that demand high precision and minimal thermal distortion.

What Materials Are Compatible with Wire EDM?

Wire EDM is highly adaptable, capable of machining a diverse range of conductive materials with exceptional precision. Here’s a breakdown of the most commonly processed materials:

Aluminum

A highly conductive and relatively soft material, aluminum is easy to machine. However, precise parameter control is essential to prevent excessive wire wear and achieve a smooth surface finish.

Titanium

Renowned for its strength and lightweight properties, titanium is widely used in aerospace and medical applications. Wire EDM requires specific settings to handle titanium’s reactive nature and manage heat dissipation.

Stainless Steel

Favored for its strength and corrosion resistance, stainless steel is a popular choice across various industries. Wire EDM can efficiently machine this material with high precision and minimal distortion.

Hardened Tool Steel

Commonly used for molds, dies, and other tooling applications, hardened tool steel demands slower cutting speeds and higher power settings. However, it delivers excellent accuracy and surface quality.

Carbide

An extremely hard material often used for cutting tools and molds. Due to its hardness, carbide requires premium wires like tungsten or coated wires to ensure efficient cutting and a high-quality finish.

Copper

With excellent electrical conductivity, copper is frequently used in electrical components. It is relatively soft and easy to machine, similar to aluminum, but typically produces smoother cuts.

Graphite

Although not a metal, graphite’s conductivity allows it to be machined with wire EDM. However, managing the abrasive nature of graphite dust is crucial to maintain machine performance.

What Are the Applications of Wire EDM Machining?

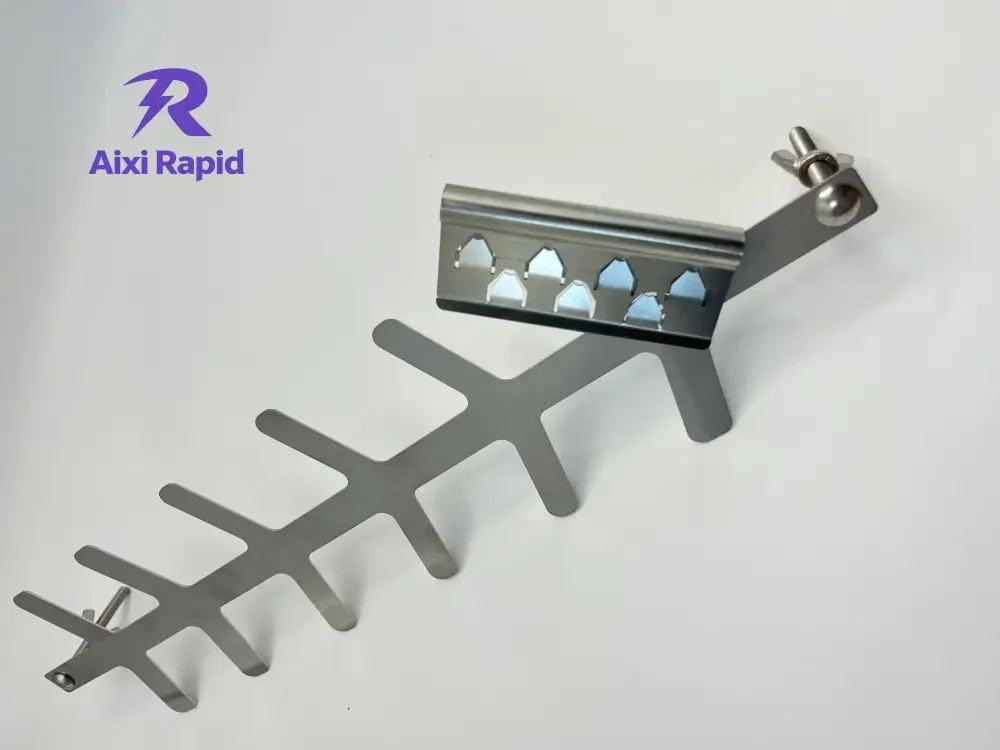

Wire EDM (Wire Electrical Discharge Machining) is a highly versatile technology known for its precision in cutting intricate shapes and detailed designs, particularly in tough materials.

Below are eight key industries that benefit from wire EDM’s capabilities, along with specific applications for each:

Get a Quote

Aerospace

Wire EDM is essential for machining high-strength, heat-resistant materials used in critical aerospace parts like engine components and turbine blades, where accuracy is crucial.

Automotive

In the automotive industry, wire EDM is employed to create intricate parts such as injector nozzles, transmission components, and detailed molds.

Medical Devices

This technology is ideal for manufacturing precision instruments such as surgical tools and implants, where exact tolerances and smooth surface finishes are required.

Tool and Die Making

Wire EDM is widely used to produce molds, dies, and stamps that need fine details and durability for high-volume production.

Electronics

Wire EDM enables the creation of components with fine features in the electronics sector, such as semiconductor parts and precision connectors.

Jewelry

Custom jewelry and watchmaking benefit from wire EDM’s ability to work with precious metals and produce complex designs that would be difficult to achieve using traditional methods.

Research and Development

In R&D, wire EDM assists in rapidly prototyping complex parts, offering precision machining across a variety of materials.

Defense

For military applications, wire EDM is used to produce components for missile systems, electronic enclosures, and other specialized hardware that requires strict specifications and high material integrity.

What are the Advantages of Wire EDM Machining?

Wire EDM provides numerous advantages that make it an ideal solution for precision machining:

Exceptional Precision

Capable of achieving extremely tight tolerances, as fine as 0.0001 inches, allowing for the creation of highly accurate and detailed components.

Ability to Cut Complex Geometries

Wire EDM can effortlessly produce intricate shapes and contours that are difficult or impossible to achieve with conventional machining techniques.

No Physical Contact

Since the cutting process relies on electrical discharges rather than physical tools, there is no mechanical stress or distortion on the workpiece.

Superior Surface Finish

Delivers smooth and clean surface finishes, often eliminating the need for additional polishing or finishing steps.

Versatile Material Compatibility

Effectively cuts through a wide variety of conductive materials, including hardened steels, titanium, and carbide, without requiring pre-treatment.

Minimal Heat-Affected Zone (HAZ)

The process generates minimal heat, preventing material deformation and preserving the mechanical properties of the workpiece.

Cost-Effective for Complex Projects

Ideal for producing low to medium-volume parts with intricate designs, reducing tooling costs and improving efficiency.

Eco-Friendly Process

Utilizes deionized water as a dielectric fluid and generates minimal waste, making it an environmentally friendly machining option.

What Are the Limitations and Challenges of Wire EDM Machining?

Despite the numerous advantages of wire EDM, the process comes with certain limitations and challenges that need to be considered for optimal use:

  • Limited to Conductive Materials: Wire EDM can only cut electrically conductive materials, excluding non-metals like plastics or ceramics from the process.
  • Slower Machining Speed: Compared to conventional cutting methods, wire EDM operates at a relatively slow pace, which can extend production time, especially when working with thicker or harder materials.
  • Higher Operating Costs: The process involves expenses related to consumables such as specialized wires, dielectric fluid, and electricity, making it more costly than traditional machining methods.
  • Regular Maintenance Needs: To maintain precision and efficiency, wire EDM machines require frequent maintenance, including replacing filters, managing dielectric fluid quality, and preventing wire breakage.
  • Potential for Heat-Affected Zone (HAZ): Although the process produces a smooth surface finish, the electrical discharge can create a small heat-affected zone that may alter the material’s microstructure and affect its mechanical properties.

Accuracy and Tolerances in Wire EDM

Wire EDM is highly regarded for its exceptional precision and ability to achieve ultra-tight tolerances, making it a preferred choice for industries like aerospace and medical device manufacturing.

  • Unmatched Accuracy: Advanced wire EDM machines can reach a positional accuracy of up to 0.000004 inches (40 millionths of an inch), allowing for highly intricate and detailed cuts.
  • Tight Tolerances: Standard wire EDM operations can consistently achieve tolerances as precise as ±0.0001 inches. For specialized applications, certain machines can reach even finer tolerances, down to ±0.000004 inches.
  • Key Influencing Factors: The accuracy of wire EDM is affected by factors such as wire type and condition, machine stability and calibration, material properties, and the effective management of dielectric fluid.

Proper machine setup and regular maintenance are essential for maintaining these high levels of precision and ensuring consistent, high-quality results.

Cutting Thickness Capability of Wire EDM

Wire EDM is capable of cutting materials as thin as 0.004 inches and as thick as 16 inches, depending on the machine’s design and wire tension control.

This cutting range provides exceptional versatility, allowing the process to handle a wide variety of applications. From crafting delicate medical instruments to producing durable aerospace components, wire EDM can meet the demands for both intricate details and deep cuts with high precision.

How Fast Does Wire EDM Cut?

Wire EDM typically cuts at a speed ranging from 0.004 to 0.012 inches per minute, depending on factors such as material type, thickness, and the desired surface finish.

The cutting speed is also influenced by the wire material, machine power settings, and the conductivity and hardness of the workpiece. Although wire EDM is slower compared to conventional machining methods, its exceptional precision makes it the preferred choice for producing intricate and highly detailed components where accuracy is more important than speed.

How Long Does the Wire EDM Process Usually Take?

The wide variation in cutting time is a result of factors such as the part’s complexity, size, and the specific requirements of the machining process.

Factors That Affect the Duration of Wire EDM Cutting:

  • Material Thickness and Type: Cutting through thicker or harder materials generally takes longer, as these materials require slower feed rates to maintain accuracy.
  • Part Complexity: Parts with intricate designs and tight tolerances require more time, as the machine must perform more precise, slower cuts.
  • Wire Type: The type of wire used can influence cutting speed. For example, coated wires typically offer faster cutting rates compared to uncoated wires.
  • Surface Finish Requirements: If a finer surface finish is needed, multiple passes might be required, increasing the machining time.
  • Cutting Settings: Parameters such as voltage, current, and pulse frequency play a role in determining how quickly the wire can move through the material, impacting the overall cutting time.

What is the Cost of Wire EDM Cutting?

The price of wire EDM cutting can vary significantly, generally falling between $15 and $100 per hour. This variation is influenced by several factors, including the complexity of the part, the material being cut, and the specific production requirements.

What Factors Affect the Cost of Wire EDM Cutting?

  • Machine Costs: The initial investment or leasing fees for the wire EDM machine are a significant cost factor. Machines with advanced features and higher precision typically come with higher costs.
  • Labor Costs: Skilled operators are essential for the setup, monitoring, and adjustment of the wire EDM process, adding to the overall cost of the operation.
  • Electricity Costs: Wire EDM machines require substantial electricity, especially for long-duration cuts, which increases operational costs.
  • Consumables: Regular replacement of consumables such as wires, filters, and dielectric fluids contributes to ongoing operational expenses.
  • Material Costs: The material being machined affects the cost, with tougher materials causing greater wear on the wire and requiring slower cutting speeds, which can increase processing time and expenses.
  • Maintenance and Downtime: Routine maintenance is necessary to keep the machine in working order, and any downtime for repairs or upkeep further impacts overall costs.

What are the Essential Considerations When Using Wire EDM?

Several key factors play a crucial role in the success of the wire EDM (Electrical Discharge Machining) process, impacting both performance and outcomes.

These factors, such as selecting the right wire, adjusting power settings, and properly positioning the material, must be carefully managed to ensure optimal precision and cost-efficiency in the machining process.

Get a Quote

Wire Selection

Material: Different wire types, such as brass, coated, or tungsten, have unique characteristics that influence cutting performance. For instance, brass wires are popular for their electrical conductivity and cost-effectiveness, while coated wires offer faster cutting speeds and better surface finishes.
Diameter: The diameter of the wire affects cutting precision. Thinner wires offer more detailed cuts but are more fragile, requiring slower speeds and careful handling.

Power Adjustments

Voltage and Current: Properly adjusting voltage and current is essential for managing the intensity and frequency of the electrical discharges. While higher settings can speed up the cutting process, they may also risk surface quality or wear out the wire faster.
Pulse Control: Optimizing the duration and frequency of electrical pulses based on the material and thickness ensures efficient cutting while minimizing wire breakage.

Material Setup

  • Workpiece Stability: Ensuring the workpiece is firmly secured is crucial for precise cutting, particularly for complex or delicate parts.
  • Thickness and Size: The material’s thickness and size must be considered to ensure uniform cutting conditions, allowing for consistent results across the workpiece.

Safety and Maintenance Considerations in Wire EDM Operations

Ensuring safety and conducting routine maintenance are essential in wire EDM operations to preserve the machine’s lifespan and safeguard the well-being of operators.

Safety Measures

  • Ongoing Training: Operators must be continuously trained on the latest safety procedures and emergency protocols.
  • Protective Equipment: Essential safety gear, including gloves, goggles, and face shields, should be worn to protect against sparks and flying debris.
  • Emergency Shutoffs: Machines must have easily accessible emergency stop buttons to halt operations immediately if necessary.

Routine Maintenance Procedures

  • Wire Inspection: Regular checks and timely replacement of the wire are crucial to avoid breakage, which can lead to delays and potential damage.
  • Dielectric Fluid Care: Ensure the dielectric fluid remains clean and at the appropriate level to facilitate effective cooling and debris removal.
  • Filter and Reservoir Maintenance: Filters should be cleaned or replaced, and fluid reservoirs checked regularly to maintain machine efficiency and prevent contamination.

How to Choose a Wire EDM Service Provider

Selecting the right wire EDM service provider is essential to ensure high-quality results and reliable service in precision manufacturing.

When evaluating potential providers, it’s important to consider several factors that can influence both the quality of the work and the overall service experience. Here’s what you should keep in mind during the selection process:

Questions to Ask Potential Service Providers:

  • Experience and Expertise: How long have you been in the wire EDM business? Could you provide details about the qualifications and training of your operators?
  • Capacity and Capability: What are your machine capacities, and what is the maximum size you can handle?
  • Quality Control: What quality control measures do you have in place? Are there any certifications your facility holds that demonstrate your commitment to quality?
  • Turnaround Time: How long do you typically take to complete projects similar to ours?
  • Cost Structure: Can you provide a detailed breakdown of your pricing? What factors might influence the final cost?
  • Support and Service: How do you manage client communication and provide updates on the progress of the project? How do you handle issues or concerns that arise during machining?

Evaluating Technical Capabilities and Past Work:

  • Machine Technology: Evaluate the technology and condition of their wire EDM machines. Machines with advanced features, such as multi-axis cutting and fine finish capabilities, suggest the provider’s commitment to utilizing the latest equipment.
  • Portfolio Review: Request examples of previous projects similar to your needs. Pay attention to the complexity of parts they’ve machined and the industries they serve.
  • Client Testimonials and References: Reviews and references can offer insight into the reliability and quality of the service provider. A credible provider should be able to share references from past clients.
  • Sample Testing: If possible, request a trial project to assess the actual quality of their work. This helps determine whether they can meet your specific requirements and deadlines.

3ERP is a top provider of CNC machining services, offering wire EDM capabilities. With state-of-the-art equipment and a team of skilled engineers, they deliver parts with tolerances as tight as ±0.01 mm, often within a rapid turnaround of just 5 days.

How does Wire EDM differ from other EDM technologies?

Wire EDM (Electrical Discharge Machining) stands out for its high precision and versatility, but it differs from other EDM technologies such as sinker EDM and hole popper EDM.

Recognizing these differences is important when choosing the right EDM technology for a given application.

Get a Quote

Wire EDM vs. Conventional EDM

Wire EDM:

  • Process: Uses a continuously moving wire to cut or shape material, enabling the creation of intricate details and complex shapes.
  • Materials: Particularly effective on metals like titanium, alloys, and superalloys. It excels in machining materials that are difficult to handle with traditional methods.
    Applications: Commonly used in producing molds, dies, and complex aerospace components.
  • Advantages: Capable of achieving extremely fine tolerances (as small as 0.0001 inches), providing high-quality surface finishes, and cutting small-radius inside corners.
  • Limitations: Slower cutting speeds compared to other EDM methods, with cutting rates influenced by wire integrity and material thickness.

Sinker EDM:

  • Process: Uses an electrode shaped like the intended cavity, which is gradually lowered onto the material to erode and form the shape through spark discharge.
  • Materials: Works well on the same range of materials as wire EDM, but offers more flexibility in electrode material choices.
  • Applications: Ideal for large molds, dies, and stamping tools where intricate details or fine finishes are not the main focus.
  • Advantages: Faster material removal for large volumes, and capable of machining deep cavities or complex shapes without needing pre-drilled holes.
    Limitations: Does not achieve the fine tolerances or intricate details that wire EDM can. Electrode wear can affect dimensional accuracy over time.

Hole Popper EDM:

  • Process: Designed for drilling multiple rows of holes through hard materials using hollow electrodes, with high speed and precision.
  • Materials: Primarily used on hard metals and alloys that are difficult to drill using conventional methods.
  • Applications: Common in creating cooling holes in turbine blades, fuel system components, and other aerospace parts.
  • Advantages: Efficient in drilling small, deep holes with precision. It can drill through tough materials without causing mechanical stress or distortion.
  • Limitations: Limited to hole-making; not suitable for creating complex shapes or fine details like wire EDM.

Each EDM technology is designed to meet specific needs depending on factors such as precision, material type, and the intended functionality of the final product.

What Does the Future Hold for Wire EDM Technology?

The future of wire EDM (Electrical Discharge Machining) technology holds exciting prospects, with continuous advancements focused on improving precision, efficiency, and versatility. Key areas of innovation include:

  • Automation and Integration: Future developments are expected to enhance the integration of wire EDM machines with automated production lines and robotics, streamlining operations, cutting costs, and boosting production efficiency.
  • Material Processing Capabilities: Technological advancements will enable wire EDM machines to handle a broader range of materials, including previously difficult-to-machine substances like certain ceramics and composites, through improved electrodes and dielectric fluids.
  • Precision and Surface Finish Enhancements: Ongoing improvements in CNC technology and adaptive control systems will lead to even finer precision and superior surface finishes. This is essential for industries such as aerospace and microelectronics, where every detail matters.
  • Increased Efficiency and Speed: The drive to enhance cutting speed while reducing energy consumption will continue. New pulse generators and power supply systems will help increase productivity and reduce operational costs, without sacrificing accuracy.
  • Predictive Maintenance and Monitoring: The integration of advanced sensors and machine learning will allow for real-time monitoring of wire EDM machines, predicting maintenance needs and minimizing downtime. This will ensure sustained productivity and extend the lifespan of the equipment.

Conclusion

Wire EDM technology plays a pivotal role in modern manufacturing, recognized for its accuracy, dependability, and adaptability. In this guide, we’ve highlighted how wire EDM distinguishes itself from other machining methods, especially through its capacity to create detailed designs and handle tough materials.

Looking to the future, wire EDM is set to evolve even further, with innovations focused on improving cutting speed, efficiency, and expanding its application scope. As these advancements unfold, wire EDM will continue to be a driving force for innovation in the manufacturing sector, solidifying its essential place in the industry.
